What if you have little space, yet need to carry out both blasting and painting operations? Basically, you have two possibilities:
- you outsource one or both operations (with all the related consequences);
- you turn to Eurotherm for a customised solution!
That’s how this all-in-one shot blasting and liquid painting cabin was born.
A single cabin for both blasting and painting: the system supplied by Eurotherm
We have recently designed and installed this 2-in-1 cabin in which you can both sandblast and liquid paint.
Two independent suction systems
The booth is equipped with two independent suction systems:

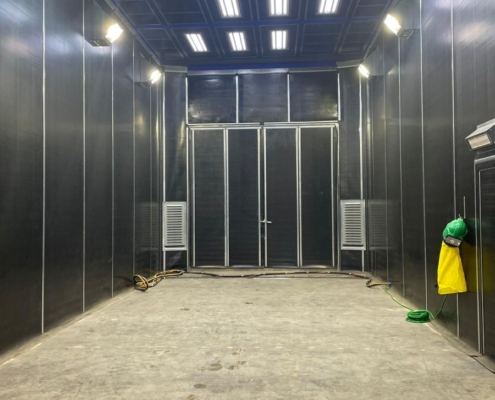

- During the blasting phase, the external dust collector filter unit comes into operation, which sucks in the dust that is created during the sandblasting process, through the two grids on the back wall, while the suction wall for liquid painting is protected by a specific door covered in anti-abrasive rubber.
- During the painting process, the suction wall with dry filters and the roof heat generator are activated, while the external filter unit is deactivated.
Switching between the two phases is done by pressing a simple button on the touch-screen control panel and by opening or closing a special pre-insulated door lined with anti-abrasive rubber that serves to protect the liquid suction wall during the blasting phase.
Is that it? Precisely. With these two simple (and above all quick) operations, the company can easily switch between the two functions of the booth, going from one to the other in a matter of minutes.
The roof heat generator and the suction wall
The cabin is also equipped with a roof-mounted heat generator that:
- together with the suction wall during painting, ensures a constant semi-vertical air flow and adequate pressurisation of the environment;
- also allows the drying function at 60°C with forced recirculation.
